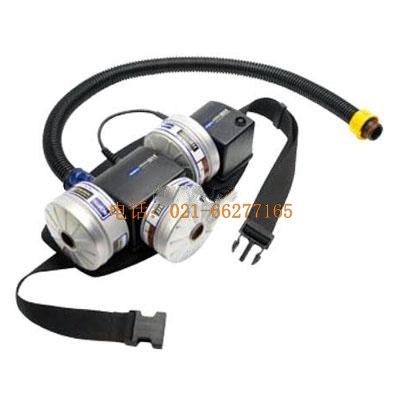

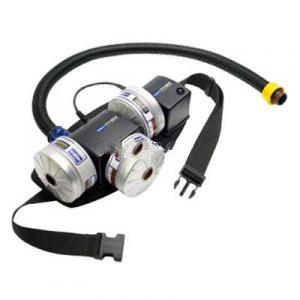

产品名称:巴固(霍尼韦尔/斯博瑞安)(诺斯)Compact Air® 电动送风呼吸系统A150102-00
产品介绍:
产品特点:
·可用于气体、蒸汽、固体及液体颗粒防护。为同类产品中最值得信赖的一款产品,产品享誉市场超过12年。经CE认证,符合EN12941及EN12942标准
·适用作业环境:喷漆/制药/研磨/焊接/化工处理/铸造
·便携包装箱设计,仅重1.35公斤。结构紧凑灵巧,电池更换容易,携带轻松便捷
·送风量160-200升/分钟
·NiMH电池(镍氢),可反复充电500次。并可连续作业8小时
·鼓风机及电池独立定位,腰带按人体工程科学设计,将重量均匀分配于腰部,就算长时间佩戴也不会让用户感觉额外负担
·接软管及接头皆可按客户要求定制,结实耐用。并有螺纹及卡口两种接头可供选配
·配有独立平衡风扇,可延长发动机寿命
·电池及鼓风机皆为防水喷溅设计,无清洁死角,清洁维护方便
·并可与多款巴固(霍尼韦尔/斯博瑞安)头罩,头盔或面具配合使用Compact Air® Plus 为Compact Air® 的升级版。与Compact Air®相比:
·可通过电量来自动调节舒适的流量
·可自动开始,控制和校准
·恒流受控气流150l/min,可连续作业10小时
·兼具声音和视觉报警
·CE certified, EN12941 and EN12942 standard.
·The COMPACT AIR powered respirator is used in combination with EN 148-1 particleand or gas filters. The contaminated air is drawn through 3 filters and supplies a continuous flow of clean air to the wearer’s headpiece (hood or mask).
·Application: Painting, Welding, grinding, chemical handling, cleaning, etc..
·Weight: 1.35 kilogram, without filters. Both battery and blower are separate which makes it easy to change the battery during the working day.
·Airflow: 160 - 200 l/min, depending on type of filters
·Battery: NiMH (rechargeable). More than 500 times rechargable and 8 hours working time.
·Blower and battery are positioned separately. Belt is well designed to balance the weight on the waist which avoids extra load even in long working period.
·Limits for use: Do not use in confined spaces or places with a oxygen level <19%
·Can be used with various types of hoods, helmets and masks.Compact Air Plus is the updated version of Compact Air which features:
·Automatic operating, controling and adjusting.
·Constant air flow of 150L/min and 10 hours working time.
·Audio and visual warning for air flow and batter
产品规格:
订货号 | 产品名称 | 软管接头类型 | 配合 产品 |
便携箱 | Nimh 镍氢电池 |
充电器 | 空气 流量计 |
Pvc 腰带 |
软管 | 低流量及电量报警器 |
A150102-00 | COMPACT AIR® 系列 卡口式接头电动送风系统 |
卡口式 | 头罩 | 有 | 有 | 智能型 | 有 | 有 | 有 | 无 |
A150103-00 | COMPACT AIR® 系列 螺口式接头电动送风系统 |
螺口式 | 面罩 | 有 | 有 | 智能型 | 有 | 有 | 有 | 无 |
A150140-00 | COMPACT AIR® ATEX 卡口式接头防爆电动送风系统 |
卡口式 | 头罩 | 有 | 有 | 智能型 | 有 | 有 | 有 | 无 |
A150202 | COMPACT AIR® PLUS 系列 卡口式接头电动送风系统 |
卡口式 | 头罩 | 有 | 有 | 智能型 | 有 | 有 | 有 | 声音/ 视觉兼具 |
A150203 | COMPACT AIR® PLUS 系列 螺口式接头电动送风系统 |
螺口式 | 面罩 | 有 | 有 | 智能型 | 有 | 有 | 有 | 声音/ 视觉兼具 |
Ref. | Name | Hose Connection |
Headtops | Case | Nimh Battery |
Charger | Airflow Indicator |
Pvc belt | Hose | Low air flow and battery warning |
A150102-00 | Compact air papr with bayonet Connection |
Bayonet Connection |
Hood | Y | Y | Intelligent | Y | Y | Y | 无 |
A150103-00 | Compact air papr with threaded Connection |
Threaded Connection |
Mask | Y | Y | Intelligent | Y | Y | Y | 无 |
A150140-00 | Compact air ayex papr with bayonet connection |
Bayonet Connection |
Hood | Y | Y | Intelligent | Y | Y | Y | 无 |
A150202 | Compact air plus papr with bayonet connection |
Bayonet Connection |
Hood | Y | Y | Intelligent | Y | Y | Y | Audio and visual |
A150203 | Compact air plus papr with bayonet connection |
Threaded Connection |
Mask | Y | Y | Intelligent | Y | Y | Y | Audio and visual |
