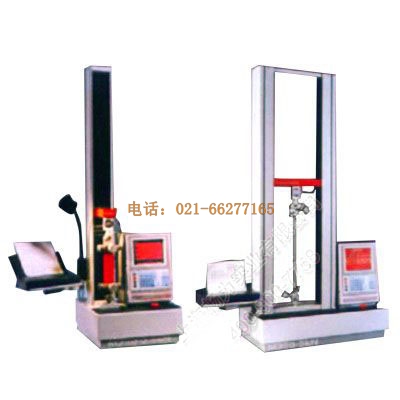

商品名称：TNJ05 系列高级万用强力机

高级万用强力机，特别适用于纺织品的强力测试，低成本，高性能。无控制面板,直接采用电脑控制，高分辨率平面图象显示，测力读数自动选程。本机精度±0.5%,测力传感器最高精度可达1/1000个单位。加载速率1000/s。可存贮多达100个测试方法并对数据进行恢复。

直接打印出A4或信纸测试报告，包括独立测试结果、统计分析及测试。测力传感器800％超载保护，自动识别功能，可选单位：N，kgf，lbf，mm和英寸。丁字头运动显示读数可精确至0.001mm，绝对丁字头位置可精确至0.001mm。精密滚珠丝杠及引导系统、高精度闭环速度控制器、缓行装置及可选快速返程、微机RS232接口，定载及行程保护限制，即时负载及拉伸循环测试，长期蠕变测试。

数字控制试样破坏检测功能，自动返回无机械张力状态的测试位置，自动检测校准功能，冲击保护，可选自动复位，自动回零。

Particularly applicable to the strong textile testing, low-cost, high-performance. No control panel, the direct use of computer-controlled, high-resolution image plane, measured reading of the automatic election process. The accuracy of ± 0.5%, the most high-precision measurement of the sensor up to 1 / 1000 units. Loading rate 1000 / s. Can be stored up to 100 tests and data recovery.
Direct print A4 or letter-test reports, including the independent test results, statistical analysis and testing. Force sensors 800% overload protection, automatic identification, optional units: N, kgf, lbf, mm and inches. Three-way movement shows that the first reading can be accurate to 0.001 mm, the first Three-way location can be absolutely accurate to 0.001 mm. Precision ball screws and guidance systems, high-precision closed-loop speed controller, Postponed optional devices and rapid return, RS232 computer interface, will be contained and itinerary protection restrictions, immediate load and tensile test cycle, the long-term creep testing.
Digital control sample damage detection, automatically without mechanical tension to return to the state test location, automatically detect calibration, impact protection, optional automatic reduction, automatic back to zero.

技术参数Techniques：
TNG05-1(单臂Single Column) TNG05-2 TNG05-3 TNG05-4 TNG05-5
量程Range 3.0kn 5kn 10kn 25kn 50kn
300kg 500kg 1000kg 2500kg 5000kg
行程（不包括夹具长度）Tour (excluding fixture length)
1100mm 1100mm 1100mm 1050mm 980mm
长Length 460mm 770mm 770mm 910mm 910mm
宽Width 440mm 450mm 450mm 500mm 1620mm
工作截面Working section100mm 295mm 295mm 420mm 420mm
速度范围Speed Range 0.001-1000mm/min 0.001-500mm/min
返程速度Return speed 500mm/min 500mm/min 1000mm/min 500mm/min 500mm/min
重量Weight 43kg 95kg 115kg 190kg 235kg
标准Standards: BS EN10002-2 ASTM E-4 BS 1606/0.5 AFNOR A03-501 DIN 51221/1 M&S P11,P12,P13,P14,P14A P98,P115
