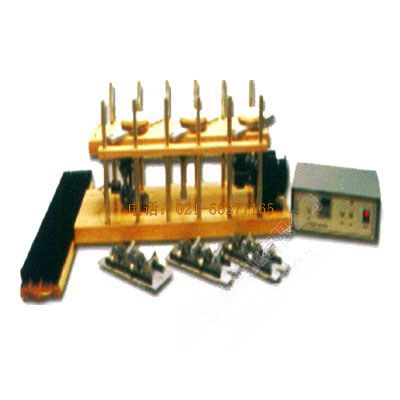

商品名称：TNG18 刷式起毛起球测试仪

本刷式起毛起球测试仪模拟穿着和正常使用条件下织物的起球或起毛性能，可用于包括机织物和针织物在内的服装和汽车内饰用材料。6个测试头，方法是以圆轨迹刷磨2块相同的样品。测试样需用起球评级视镜、灯箱或类似箱内与标准起球图片比较评级。

Brush Pilling ball wear tester simulation and under normal conditions of use fabric pilling or pilling properties, can be used include Woven and knitted fabrics, garments and automotive interiors materials. The first six tests, the method is based on the circular trajectory brush grinding two identical samples. Test samples required Pilling rating endoscopy, bollards, or similar box with the ball with the standard picture comparison rating.

技术指标Techniques：
平板带有聚氨酯泡沫表面The plate including Polyurethane foam
圆型样品夹头Circle sample camp：660g，软泡沫橡胶表面soft foam plastic surface
起球幅度Pilling rage：19mm
尼龙刷Nylon brush (高High)：25.4mm
方形样品：夹头6个，橡胶边夹具，砂纸背面Consist of square sample, 6 chunks, rubber edge grips, sandpaper.
旋转速度Rotation speed：58 r/min
海绵体Sponge dimension：尺寸51 × 102 × 152 mm
旋转计数电子Rotation counter: 999999
电源Power : 220 V/50 Hz
外形尺寸Dimensions：914 × 305 × 381mm（L×W×H）
标准Standards：FORD BN-108-03 GM 9652P ASTM D 3511
